800mm Ss Sheet Cutting Machine 50Hz 3ph Steel Strip Slitting Machine

Brand Name : RILANT

Model Number : SZHG-2500N

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 2 sets per month

Delivery Time : 45 working days

Packaging Details : Standard export package

Product Name : Steel Sheet Metal Coil Cut To Length Line Slitting Machinery Steel Coil Slitting Line

Material : Carbon Steel,Stainless Steel

Keyword : Steel strip cutting machine,cut to length line

Max. Coil Width : 800-2500 mm

Voltage : 380V,50Hz,3 Phase

Rated Power : 120 KW

Dimension(L*W*H) : 10000*2000*2500 mm

Applicable Industry : Machinery,energy,: Construction works etc

Weight : 20 ton

Control system : PLC

Function : steel slitting process

Contact Now

Steel Sheet Metal Coil Cut To Length Line Slitting Machinery Steel Coil Slitting Line

Slitting machinery is a lengthways cutting production line, for cutting metal sheet stirp. sheet coil slitting machine can uncoil metal sheet strip coil, then slit(cut) the metal sheet strip longitudinal, then rewind the slitted metal sheet strips, for getting narrow metal sheet strip coils.

The cut to length line is used to get flat sheets from steel coils after 7-8 working procedures.

The total line is CNC control.

After operator put coil onto the loading cart, the following procedures will finish automatically.

The touch screen in the controlling table will allow operator to input parameters required.

The total line is easy to operate.

Such a line normally containing below working procedures:

1.unloading cart (optional)

2. decoiling

3. shoveling and pressing device

4. preleveling

5. crop shearing

6. loop

7. correcting and slitting

8. loop

9. seperator

10. damping

11. recolilng

12.unloading cart

1 Guiding speed ~10m/min(adjustable)
2 Line speed 0~150m/min(adjustable)
3 Slitting way Drive shear
4 Recoiling way Roll-up style
5 Operation height +1000mm
6 Machine size 28m X 10m
7 Running direction The operator operates on the side of line, running from left to right
Machine painting:Customized
Main machine color Seller supply colour sample
Security and other parts Seller supply colour sample
Electric cabinet, console, fuel tank Seller supply colour sample
Equipment working conditions:
Power conditions 380V,50Hz
Gas source Compressed air: Pressure: 0.5~0.6MPa Displacement: 1m3/min
Water source No requirement
Plant environment conditions Temperature -5℃ to 40℃
Relative humidity (non-condensing)

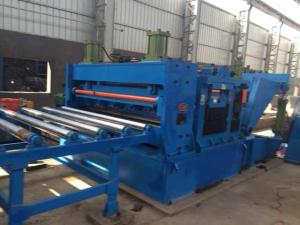

800mm Ss Sheet Cutting Machine 50Hz 3ph Steel Strip Slitting Machine
